How to Read Section Views and Detail Views in Mechanical Drawings

Why Section Views Exist: Hidden Lines Don't Scale

Hidden lines can quickly become a mess when designing complex internal features, such as multiple bores, pockets, cavities, and threaded holes. The resulting drawing becomes a jungle of dashed lines making it difficult to determine the actual configuration.

Section views differ from regular views in that the view is drawn as if you cut the part with a saw, in a particular plane, and then removed a piece of the part for viewing purposes. Section views clarify what would normally be dashed lines by making those areas solid.

It shows you internal details directly, rather than using baffling hidden lines, it gets rid of pointless white space, and it clarifies details that are absolutely impossible to read from the outside.

As parts get more complex section views become a requirement. Section views help to decode complex parts and make drawings that could be nightmares of overlapping dashed lines instead very clear and logical.

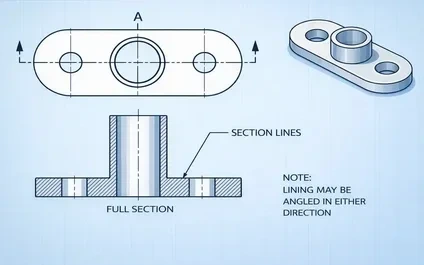

Reading a Section View: Cut Plane, Removed Material, Exposed Geometry

Section views are drawings that show what you would see if you physically cut through a part of something and looked along the cut surface. You have to know what you're looking at, though.

First: determine the location of the cutting plane in the main view. This is usually designated by a thicker, "arrowed" cutting line between two views, and labeled with a letter, such as "A-A" or "B-B". Use this reference to determine the actual location of the imaginary cut in the drawing.

Second: look at what got removed from the object. Look at everything on one side of the cutting plane and see that it has been entirely removed and you are viewing only what is left.

Three basic hatch rules to remember: First: Only hatch in the area that the cutting plane is passing through. Use diagonal lines to show this. The lines should be moving in the same general direction of the cut and should look smooth and flowing. Lines that are going in the opposite direction of the cut look awkward and out of place. Second: Avoid over-hatching. Use minimum lines to indicate cut-away sections, and let the viewer interpret the remaining mass. Third: Be aware of what has been created by the cut, and what has not. Only hatch the areas that the cutting plane has cut through. Lines behind the cutting plane that were created by the cut but were not cut through should appear as regular lines without hatch.

You'll also notice within the drawings that sections that have hatching also will include circles or edges of certain elements/holes Features that are behind the section line and now visible with the cut away material.

Cutting Plane Lines: Where the Cut Is and Which Way You're Looking

One of the features of the diagram that may not at first be apparent is the cutting plane line (heavy black line). This line serves two purposes, it shows where the cut to create the various view has occurred, and it also indicates the viewing direction.

This line illustrates the cut between two imaginary sections. The arrows on the ends of the section line illustrate the way of viewing the section, i.e. if the arrows point to the right, then the section view would be from the left looking to the right.

Labels (like "A-A" or "SECTION B-B") are used to connect the cutting plane line in the main view to the section view. In most drawings, more than one section is included; therefore, each section gets a different letter (A-A, B-B, C-C, etc.).

Viewing the geometry the wrong way can lead to mistakes by interpreting it backwards; making sure the arrow is correct for the section is key to avoiding this mistake.

Hatching Rules: What Gets Hatched and What Stays Blank

Here we talk about what will hatch in Poptropi 2. Let me know if you have any questions while we're going through everything!

Hatching in features and drawings is often shown by diagonal lines that represent the material that has been cut away.

A simple rule for visually accurate cutaways is this: if the cutting plane intersects solid material, fill the area with crosshatching; if the cutting plane intersects empty space (such as a cavity, a cutout, a void, or a hole), do not crosshatch that area. This aids in identification of hollow and solid features.

The standard method for hatching is a 45° angle with uniform spacing between lines. Often different materials will have different hatching patterns (i.e. steel, aluminum, plastic) but without a note to the contrary you can assume the hatching indicates structure, not material.

Section views, like most views, first draw the hatched areas (the wall thickness, solid features, etc.), and then fill in the blanks.

Common Section Types: Half, Offset, and Broken-Out Sections

Not every cut will effectively halve the part. In some cases, you will only require limited access into the part, cutting the entire thing down may remove important reference points.

Half sections: Cut away one quarter of the part (like cutting a pie). Both sides of the part section are visible. These views are especially useful for symmetrical parts.

Offset sections: Section cutting lines are not straight, but are instead bent or offset to include multiple features or internal components that would otherwise not be in alignment. This allows for more than one feature to be drawn in a single section view instead of creating additional views.

Break out specific details: Rather than drawing a section of the part, cut away a small irregular piece to show a specific detail. The break line is usually a jagged freehand line cut where the material was "broken away". This can be useful to show a single threaded hole or other small internal features without drawing an entire section.

These extracts appear to have been partially copied yet the whole section has not been included. When reading the extracted text look for the break points or the section headings to understand what has and has not been copied.

Detail Views: Enlarging Small Features Without Cluttering the Drawing

A powerful function in LabCAD allows you to create detail views. This feature is particularly useful for zooming in on tiny aspects of your creation, such as pipes or wiring, while keeping the rest of your design clean and tidy.

Detail views are enlarged details of small areas or complex features which cannot be shown clearly enough at the normal drawing scale.

I was drawing this large assembly tonight. There were a couple of tolerances / details that were important to the function of the part, but when viewed at full size in the large assembly view, the radius was soft, or the grooving detail was not what it should be. In the detail view, I zoom in on the area in the main view, then zoom up the view to something like 2X, 5X or 10X to show those features properly.

Detail views are particularly useful when drawing small radii and tight tolerances. They are used to illustrate complex components, such as multi component interfaces or threaded features where dimensions on the main view would be redundant or obscured by other dimensions.

The labels "DETAIL A (SCALE 4:1)" on the Schematic Detail views indicate that these are zoomed-in views showing a specific section of the design, all drawn at 4 times the scale of the main Schematic view.

Why This Matters: Most Internal-Geometry Mistakes Start Here

Section view drawings are a very common source of errors when interpreting and interpreting drawings. There are a huge number of errors caused by misunderstanding the section view, and many even completely ignore the section view. In many cases, people will study the main view of a part detail, assume they understand the part, and completely overlook the critical internal features that are shown in the section view.

If you can't read section views, you'll miss internal geometry – bores, counterbores, pockets, ribs, wall thicknesses. Thinking a part is solid when it actually is hollow or believing a simple through-hole exists when in reality a complex step bore actually exists.

This level of understanding allows for the ability to "read between the lines" and extract internal geometry from sectional drawings. Furthermore, the ability to determine the orientation of cutting planes will be achieved, and as a result, the student should be able to decipher the most complex of drawings.

Understanding how sections work is crucial before proceeding to assembly drawings, which typically show part interiors through sections to illustrate how components fit together, as well as manufacturing documents, which use sections to identify internal features that a machinist needs to realize during fabrication.

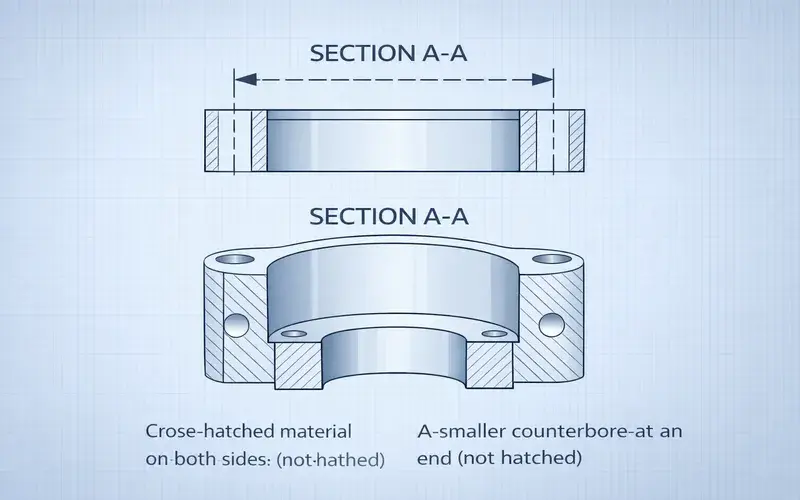

Task: Reading a Section View

Scenario: The part model is a drawn and annotated representation of a cylindrical housing with details inside. In the main view there is a cutting plane line SECTION A-A with right facing arrows. The sectional view contains:

• Cross-hatched material on both sides
• A large central bore (not hatched)
• a small counterbore at one end (not shown in shading)
• Several bolt holes around the perimeter detailed as circles (not hatched)

Questions:

1. The cross-hatching indicates material removal between the various sections. It helps to show a complete assembly by visually connecting individual cuts.
2. The central bore and counterbore locations are not hatched.
3. Are the bolt holes through wall or just through the housing? Section view isn't too clear on this.
4. If the arrows on the cutting plane point to the left instead of to the right, then the section view would look different also.

Key takeaway: Hatching shows solid material that was cut (not voids). Section views replace confusing hidden lines with clear visible edges. Cutting plane direction matters—get it backwards and you misinterpret the geometry. Sections make complex internal features immediately understandable instead of requiring you to mentally reconstruct from dozens of dashed lines.
