Fundamentals for Reading Mechanical Engineering Drawings

Engineering Drawings as Communication

An engineering drawing isn't a picture—it's a legal contract between design and manufacturing. When you hand a drawing to a machinist in another country who doesn't speak your language, they should be able to make the part exactly right without ever calling you. That's the whole point.

Every line, symbol, and note has a specific meaning defined by international standards. Random lines don't exist. If something is drawn a certain way, it means something precise. If you don't know what a dashed line means versus a solid line, you're not reading the drawing—you're guessing. And guessing in manufacturing costs real money.

The entire system is designed so different people in different places can interpret the same drawing the same way. That's why drawings follow strict conventions. Learning to read them means trusting these conventions instead of trying to figure things out from context.

How to Read an Engineering Drawing (At a Basic Level)

Here's a mistake beginners make constantly: they open a drawing, immediately zoom in on dimensions, and start trying to understand details. Then they get confused because they have no idea what they're even looking at.

You have to read drawings in order. Start big, then go small:

Step 1: What is this thing? Look at the overall shape. Is it a flat plate? A cylindrical shaft? A complex casting? Get the general form in your head first.

Step 2: How is it oriented? Which way is "up"? Where's the front? Understanding the part's orientation in the views prevents you from mentally rotating things incorrectly later.

Step 3: What type of drawing is this? Is it one single part, or is it an assembly with multiple components? This changes how you interpret everything else.

Only after you understand the big picture should you start looking at specific dimensions, tolerances, or annotations. If you skip this sequence, you're guaranteed to misread something important.

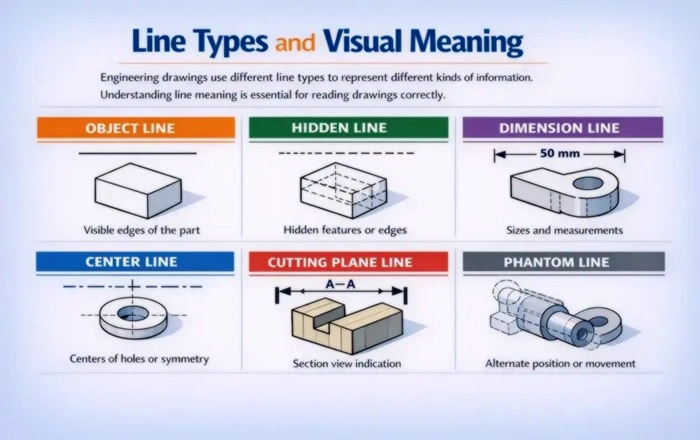

Line Types and Visual Meaning

Different line types aren't just stylistic choices—they encode different kinds of information. If you can't tell the difference between a solid line, a dashed line, and a center line, you can't read drawings. It's that simple.

Thick continuous lines: These show visible edges—the parts of the object you'd see if you were looking directly at it from this angle. Most of the part's outer boundary uses these.

Dashed lines: Hidden features. Maybe there's a hole drilled through the part, but from this view you're looking at the side, so the hole isn't visible. The dashed line tells you "something is here even though you can't see it from this angle." Ignore dashed lines and you'll miss critical geometry.

Center lines (dash-dot pattern): These mark axes, symmetry, or reference locations. They're not real edges—they're construction references. If you see a center line through a circle, it's showing you where the axis of that hole or shaft is located. You use center lines to understand where features are positioned, not what they look like.

Once you can recognize these patterns instantly, you can mentally reconstruct the 3D shape from 2D views. That's the entire skill of reading drawings—turning flat lines back into solid geometry in your head.

Understanding Drawing Layout and Structure

Engineering drawings always put information in the same places. This isn't random—it's so you can find what you need quickly without hunting around the page.

The drawing field is where the actual geometry lives—the views of the part showing its shape, dimensions, and features. This is the main content area.

The title block (usually bottom-right corner) contains identification and context: part name, part number, what units you're working in, what scale the drawing uses, and revision information. This is critical metadata—you can't interpret the drawing correctly without checking the title block first.

Notes and annotations appear in various locations and provide manufacturing instructions, material specifications, and special requirements that can't be communicated through geometry alone.

Reading a drawing without checking the title block first is how you end up machining a part in inches when the drawing was in millimeters. Or manufacturing revision A when the current design is revision C. These mistakes are expensive and completely avoidable.

Reading Scale Correctly

Scale tells you the relationship between the drawing size and the actual part size. But here's what trips people up: you never measure dimensions directly from the drawing.

If a drawing says "Scale: 1:2" in the title block, that means the part is drawn at half its real size. A 100mm feature on the actual part appears as 50mm on the drawing. But you still don't measure it—you read the dimension callout, which always shows the actual manufactured size.

So why does scale exist at all? Because you can't draw a massive bridge at full size on an A4 sheet of paper, and you can't draw a tiny medical implant at actual size and still see the details. Scale makes drawings readable while dimensions make them accurate.

Bottom line: Always check the scale in the title block so you understand proportions, but always manufacture to the dimensioned values, not to what you measure on the drawing.

Standards and Consistent Interpretation

Engineering drawings follow international standards like ASME Y14.5 (common in North America) and ISO 128 (common in Europe and globally). These standards define exactly how everything should be drawn and interpreted.

Why do we need standards? Because a drawing created in Germany needs to be manufacturable in Japan, inspected in the US, and assembled in Mexico—all without errors or confusion. Standards make that possible.

Here's what the standards define:

Line styles: How thick should a visible edge line be versus a dimension line? What pattern represents a hidden feature? Standards specify this precisely.

Symbols: What does a specific surface finish symbol mean? How do you indicate a weld type? What does a particular GD&T (Geometric Dimensioning and Tolerancing) symbol require? Standards provide the dictionary.

Layout rules: Where should views be positioned relative to each other? How should projections work (first-angle vs third-angle)? Standards eliminate ambiguity.

Notation conventions: How should tolerances be written? Where do reference dimensions go? How are threads indicated? Standards keep it consistent.

When you see a symbol on a drawing, it's not open to interpretation—it has a precise meaning defined by the standard. Your job is to learn that meaning, not guess at it. This is why drawing literacy requires formal education: you're learning a standardized language, not figuring things out on the fly.

Why This Foundation Matters

Most drawing-related mistakes don't come from bad drawings—they come from bad reading. Here's what happens when people skip learning this properly:

They overlook hidden features shown as dashed lines, then wonder why the part doesn't fit together during assembly. They misinterpret the scale and assume a part is bigger or smaller than it actually is. They miss critical notes buried in annotations and manufacture parts incorrectly. They confuse reference dimensions (for information only) with actual specifications (must be manufactured exactly).

These aren't small errors—they result in scrapped parts, delayed projects, and expensive rework. And all of them trace back to not understanding drawing fundamentals.

Level 1 isn't about making you an expert reader overnight. It's about establishing reading discipline: check the title block first, identify line types correctly, understand what you're looking at before diving into details. These habits prevent almost all beginner mistakes.

Once you can read drawings reliably, then you can move on to understanding orthographic projection, dimensioning practices, section views, and assembly documentation. But without this foundation, you're building skills on top of bad assumptions—and that never works out well.

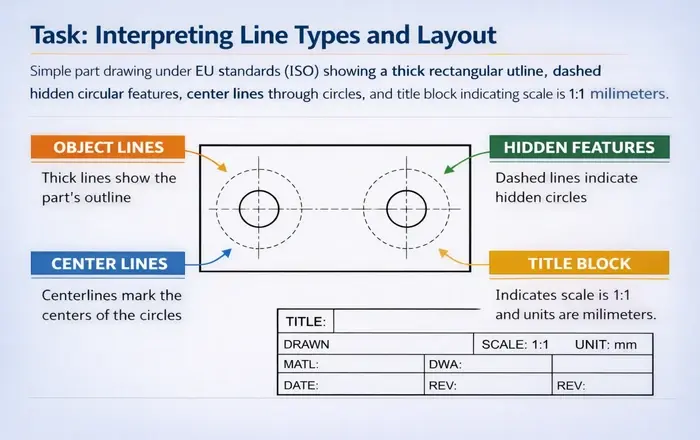

Task: Interpreting Line Types and Layout

Scenario: You've been handed a simple part drawing. Before you start manufacturing anything, you need to verify you're reading it correctly. Here's what you see:

• Thick continuous lines forming a rectangular outline
• Dashed lines inside the rectangle showing two circular features
• Center lines crossing through both circles
• Title block indicating scale is 1:1 and units are millimeters

Questions to test your reading:

1. What do the thick continuous lines represent?
2. What do the dashed circular features indicate?
3. Why are center lines shown through the circles?
4. Before measuring anything on the drawing, what must you verify in the title block?

What you should take away: Line types encode specific information (not decoration), hidden features are just as important as visible ones, title blocks aren't suggestions, and reading systematically prevents expensive errors. This is the foundation—get it right and everything else makes sense.
